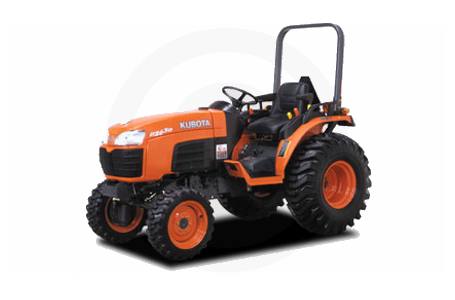

2010 Kubota B2630HSD Tractor


Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Take on everything from light construction to nursery work to small chores around the house with a B-Series tractor. With powerful new models and a host of performance-enhancing upgrades, the B-Series promises increased efficiency, power, and comfort – and delivers.


High-output engine:
To help you tackle tough jobs, the B2630 and B3030 deliver 26 horsepower and 30 gross engine horsepower, respectively.


Hydraulic independent PTO:
An efficient feature that keeps you working, the independent PTO lets you engage or disengage both the mid and rear PTO without having to stop the tractor.


More powerful HST:
At any speed, cruise control allows you to smoothly set, increase/decrease, and override (depress HST pedal) pre-set speeds without resetting the cruise control lever.


Multi-reflective headlights:
No matter when or where you're working, our new, multi-reflective headlights will let you see further and better.


Slant-nose hood:
For a better view of what's up ahead as well as efficient front-loader operation, the hood has a slanted-nose design.


Tilt steering wheel:
To provide a more comfortable driving position, the steering wheel tilts upward and downward.


3-point-hitch position control:
This feature gives you more precise control of your rear implements.


Re-designed front grille:
The newly designed front grille is a perfect match with the B2630 and B3030's slanted-nose design. It's also easier to clean.


Hydrostatic power steering:
This must-have feature provides nimble handling while greatly reducing fatigue during long hours of operation.


Widely spaced fenders:
By setting rear fenders further apart, we created more space for the operator. By angling control levers toward the operator, they're easier to reach, and, enlarged lever guides make for easy control lever recognition.


Ratchet-type lift rod:
For speedy adjustments to 3-point mounted implements, lift rod adjustments can be made without using tools.


Telescopic lower-link ends:
With an intelligent design, our telescopic lower-link ends make attaching and detaching implements a snap.


Telescopic stabilizers:
For easy adjustment of the 3-point hitch, nothing beats our telescopic stabilizers.


Offset mid-PTO:
Being offset to the side, quick installation and removal of the mower is now possible.


Increased 3-point-hitch lift capacity:
Now, with even more hydraulic power, you can take on larger, heavy-duty rear implements, and perform them with more authority.


Dash panel:
With a white background and large numbers, the easy-to-read dash panel lets you quickly monitor vital tractor functions such as engine speed, engine temperature, fuel level, etc.


Deluxe high-back seat:
With parallel-link suspension* and armrests, our comfortable, fatigue-reducing deluxe seat will keep you in the driver's seat longer. (*On the B3030 only)


Large capacity toolbox:
Sturdier and larger, the new toolbox keeps more of you tools, manuals, and other belongings, clean and dry.


Cup holder:
Now, you can take you beverage with you - by securely placing it in the essential cup holder.

    Engine
    • Type: ETVCS liquid cooled, 3 cylinder diesel
    • Make, Model: Kubota D1105E2D21
    • PTO Horsepower: 19.5 HP (14.5 kW)
    • Engine gross horsepower: 26.0 HP (19.4 kW)
    • Rated RPM: 2,800 rpm
    • Bore and stroke: 3.1 in. x 3.1 in. (78 x 78.4mm)
    • Total displacement: 68.5 cu.in. (1123cc)
    • Air Cleaner: Dual paper element
    • Lubrication: Forced lubrication
    • Cooling System: Pressurized radiator
    • Radiator fan: Radial air flow
    Capacities
    • Fuel tank: 8.1 gal. (31 l)
    • Cooling system: 4.2 qts. (4.0 l)
    • Engine oil: 3.2 qts. (3.0 l)
    • Transmission case: 4.76 gal. (18 l)
    Drive Train
    • Transmission: HST (3 range)
    • Differential lock: Standard
    • Final drive: Spur gear
    • Brake: Multiplate wet disc
    • PTO: Independent
    • PTO Rear: 540 rpm at 2,768 engine rpm
    • PTO Mid: 2,542 rpm at 2,800 engine rpm
    Hydraulics
    • Type: Open Center
    • Pump: Dual pump
    • Total pump output: 9.8 gpm (37.2 l/min)
    • Hydraulic outlet: Front outlet, Rear outlet
    • 3-point hitch: Category I
    • Hydraulic control system: Position control valve
    • Lift capacity (at lift point): 2,140 lbs. (970 kg)
    • Lift capacity (24 in. behind LP): 1,676 lbs. (760 kg)
    • Steering: Hydrostatic power steering
    Standard Tire Size
    • Front: 7-12
    • Rear: 12.4-16
    Traveling Speeds (at rated engine rpm)
    • Forward: 0-11.5 mph (0-18.6 km/h)
    • Reverse: 0-9.2 mph (0-14.8 km/h)
    Dimensions
    • Overall length (w/o 3P): 99.2 in. (2520mm)
    • Overall width (min. tread): 53.8 in. (1366mm)
    • Wheelbase: 65.6 in. (1666mm)
    • Ground clearance: 14.6 in. (370mm)
    • Turning radius with brake: 6.9 ft. (2.1 in.)
    • Weight with ROPS: 1,786 lbs. (810 kg)
    Optional Front Loader
    • Braceless frame: To provide you with optimum visibility, we eliminated the connectors and braces around the front-loader arm.
    • Protected hydraulics: For maximum protection and longer life, we routed all hydraulic hoses through the loader arms. Other benefits include improved visibility and cleaner looking front-loader design.
    • Single lever control: A single lever controls it all - raising, lowering, dumping, and rollback rotations.
    • Slanted arm design: For a better field of view during front-loader operation, the front-loader arm is slanted to match the B2630 and B3030's slanted hood. The new loader design gives it a more modern, sleek appearance.
    • Quick attach/detach front loader: the quick attach/detach pins can be conveniently handled from the operator's seat, and doesn't require tools or a second person to remove. Loader stands are attached to the boom drums for easy access.
    • Kubota quick hitch (optional): Dependable Kubota attachments (buckets and pallet forks) fit on easily, come off easily, and don't require the use of tools.
    Optional Backhoe
    • Incredible digging power: Reach a digging depth of 7.5 feet with the B2630 and B3030's superior backhoe. The bucket has a maximum digging force of 3,339 pounds and 2,097 pounds for the dipper.
    • Sub frame structure: With the performance matched BH75 backhoe, there's no need to remove the sub frame. It works with the loader installed, and it doesn't interfere with the mid-mount mower linkage. Plus, it also allows 3-point usage without having to remove the sub frame.
    • Compact lever link cover: Incorporating a stylish, compact design, the lever link cover increases foot/legroom as well as visibility.
    • Protected hoses: All hoses are routed through the backhoe arm. Not only is it a cleaner design, the hoses are protected for longer life.
    • Control valve: The high performance control valves on the BH75 backhoe provides you with smooth, efficient backhoe control that's comparable to an excavator.
    • 4-point quick-attach system: Utilizing a pin, a hook-type quick-attach system, and requiring no tools, the backhoe can be attached in minutes with the quick-attach system.
    Other Optional Implements
    • Land Pride B Series Box Scraper
    • Land Pride B Series Core Aerator
    • Land Pride B Series Disc Harrow
    • Land Pride B Series Food Plot Seeder
    • Land Pride B Series Grooming Mower
    • Land Pride B Series Hitch
    • Land Pride B Series Landscape Rake
    • Land Pride B Series Post Hole Digger
    • Land Pride B Series Rear Blade
    • Land Pride B Series Rotary Cutter
    • Land Pride B Series Rotary Tiller
    • Land Pride B Series Spreader

    Specifications

    Engine
    Engine Type E-TVCS liquid cooled, 3-cylinder diesel
    Horsepower 26 HP (19.4 kW)
    PTO HP 19.5 HP (14.5 kW)
    Rated RPM 2,800 rpm
    Bore and Stroke 3.1 in. x 3.1 in. (78 x 78.4mm)
    Specifications
    Wheelbase 65.6 in. (1666mm)
    Width 53.8 in. (1366mm)
    Weight 1,786 lbs. (810 kg)
    Ground Clearance 14.6 in. (370mm)
    Tire Size Front: 7-12; Rear: 12.4-16
    General
    Fuel System Diesel
    Fuel Capacity 8.1 gal. (31 l)
    Transmission HST (3 range)
    Brakes Multi-plate wet disc
    Hydraulics Open center
    Drive Type Spur gear

    Compare Models

    Print








    Year 2010
    Manufacturer Kubota
    Model B2630HSD Tractor
    Style Compact
    Engine
    Engine Manufacturer
    Engine Type E-TVCS liquid cooled, 3-cylinder diesel
    Horsepower 26 HP (19.4 kW)
    PTO HP 19.5 HP (14.5 kW)
    Rated RPM 2,800 rpm
    Bore and Stroke 3.1 in. x 3.1 in. (78 x 78.4mm)
    General
    Fuel System Diesel
    Fuel Capacity 8.1 gal. (31 l)
    Transmission HST (3 range)
    Brakes Multi-plate wet disc
    Hydraulics Open center
    Drive Type Spur gear
    Specifications
    Wheelbase 65.6 in. (1666mm)
    Height
    Width 53.8 in. (1366mm)
    Weight 1,786 lbs. (810 kg)
    Ground Clearance 14.6 in. (370mm)
    Tire Size Front: 7-12; Rear: 12.4-16
