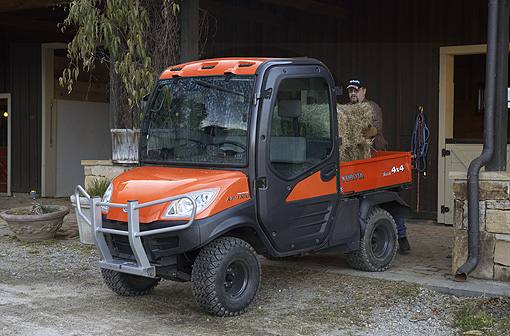

2010 Kubota RTV1100R Orange UTV
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine make: KUBOTA D1105-E2-UV
    • Engine Type: 3-cylinders, water cooled, 4-cycle, diesel, OHV
    • Displacement: 68.5 ci, (1123 cc)
    • Horsepower: 24.8 hp (18.5 kW) @ 3000 RPM
    • Fuel tank capacity: 7.9 gal. (30 l)
    Drive Train and Transmission
    • Transmission: Variable hydro transmission (VHT)
    • Max. Traveling speed: 25 mph (40 km/h)
    • Drive system: 4WD w/2WD selection
    • Differential lock: Standard; Foot pedal operated with mechanical holder
    • Gear selection: Hi-Med-Lo range forward, neutral, reverse
    • Brakes (Front/Rear): Wet-disc brakes
    • Parking brake: Rear wheel, hand lever
    • Steering: Hydrostatic power
    • Suspension (Front/Rear): Independent, Mac-Pherson strut-type/Independent; DeDion axle w/leaf springs and shock absorbers
    Dimensions & Weight
    • Length: 128.4 in. (3662 mm)
    • Width: 66.5 in. (1688 mm)
    • Height overall: 82.8 in. (2104 mm)
    • Front tread centers: 45.3 in. (1150 mm)
    • Rear tread centers: 46.5 in. (1180 mm)
    • Wheelbase: 77.4 in. (1965 mm)
    • Ground clearance (front/rear axel): 8.1 in. (205 mm)/7.5 in. (190 mm)
    • Turning diameter: 26.2 ft. (8 m)
    • Max. rolling weight (Towing capacity): 1300 lbs. (590 kg)
    • Payload capacity: 1631 lbs. (740 kg)
    • Weight: 2469 lbs. (1120 kg)
    Cargo Bed
    • Width x Length x Depth: 52 in. (1320 mm) X 46.7 in. (1180 mm) X 11.4 in. (290 mm)
    • Volume: 16.0 cu. ft. (0.455 m3)
    • Bed height (unloaded): 32.3 in. (820 mm)
    • Cargo bed load: 1102 lbs. (500 kg)
    Tires
    • Tire Size (Front): 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    • Tire Size (Rear): 25x11-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Other Features
    • Front guard: Standard
    • Sound level (operator ear): 83 db
    • Body color: Orange
    • Speedometer: Standard
    • Hydraulic bed lift: Standard

    Specifications

    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Cooling liquid-cooled
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Dimensions
    Dry Weight 2469 lbs. (1120 kg)
    Fuel Capacity 7.9 gal. (30 l)
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.1 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Towing Capacity 1300 lbs. (590 kg)
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection
    General
    Speedometer Standard
    Colors Orange

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model RTV1100R Orange UTV
    Style 4x4
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Dimensions
    Dry Weight 2469 lbs. (1120 kg)
    Front Travel
    Fuel Capacity 7.9 gal. (30 l)
    Rear Travel
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.1 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Rack Capacity
    Towing Capacity 1300 lbs. (590 kg)
    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Bore and Stroke
    Cooling liquid-cooled
    Compression Ratio
    Fuel System
    Ignition
    General
    Speedometer Standard
    Tachometer
    Odometer
    Colors Orange
    Warranty
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection
